Manufactured Sand Crushing Plant

Produce Manufactured Sand
2021-01-11

Nowadays, the construction sand is the most important building material which includes natural sand and manufactured sand in the world. Camelway provides plenty of high-quality sand making production solutions for the construction industry. The produced mechanism sand has low powder content, good grain shape and reasonable grading, and is used by many key projects around the world.

Whether your raw materials are limestone, granite, basalt, river pebbles or other stone materials, The Great Wall Construction Machinery can provide you with a tailor-made machine sand production line. The flat sand production line that we provide has a large footprint and is suitable for working in quarries. For the use inside the city, we provide HZSL modular sand building with tower structure and more floor space. Small, fully enclosed structure, more energy-saving and environmentally friendly, used by many dry powder mortar stations.

Liner Wet Sand Manufacturing Process

The materials is conveyed from the feeder to the primary jaw crusher. Then the conveyor belt transports the material to the ZS series vertical shaft impact crusher. This crusher is specially designed to produce high quality manufactured sand; its maximum feed size is up to 100 mm. At the same time, the maximum process of it is up to 500 tons of stone per hour, and the sanding rate is as high as 50% to 60%. After crushing by the ZS vertical shaft impact crusher, the material is transferred to the vibrating screen. The qualified material is transferred to the finished product area after flushing by sand washing machine; the unqualified material is returned to the raw materials area.

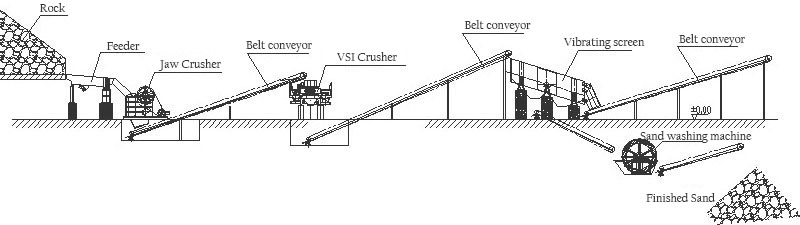

liner sand manufacturing plant

Compact Dry Sand Manufacturing Process

The material is transferred to the ZS series sand making machine through the conveyor belt. The material broken by the sand making machine in order to directly enters the screening system. After the screening, the qualified material is transferred to the finished product area after flushing by sand washing machine; the unqualified material is returned to the raw materials area.

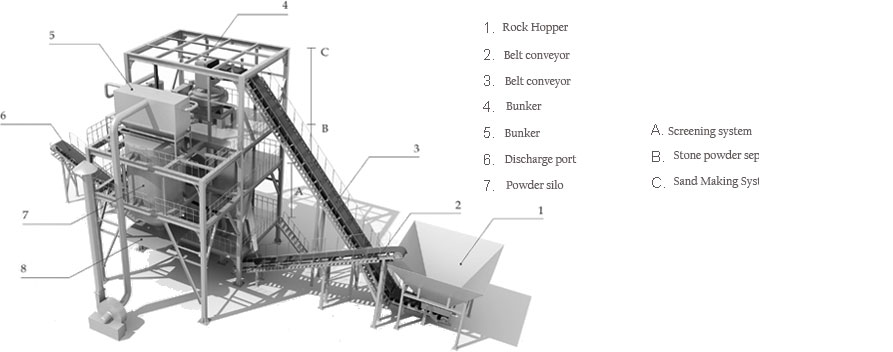

tower sand manufacturing plant

FAQ

Which equipment does a Sand Manufacturing Plant included ?

We supply different solutions according to different needs. In a sand-making production line, the core equipment includes the ZS series vertical shaft impact crusher. Other optional equipment includes crusher, vibrating screen, dryer, dust collector and so on.
