Dry Concrete Batching Plant

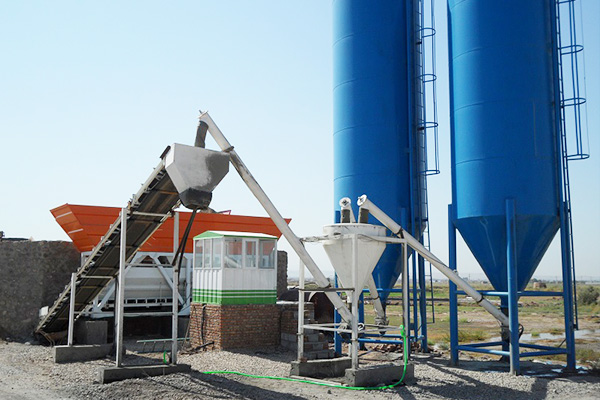

The Dry Mix Concrete Batching Plant is a concrete plant for special application. It mainly used for projects with low concrete quality requirements and long distances. Compared with wet concrete plant, the dry concrete batching plant mixes concrete by concrete truck mixer. And it is not equipped with a mixer. When the dry concrete batching plant works, each system feeds the weighed aggregates into the storage hopper, then loading the material into the truck mixer. Water and other additives add to the truck mixer. At the same time, the concrete truck mixer controls the rotation of the tank at a speed of at least 70 revolutions per minute to achieve the purpose of mixing.

Dry Concrete Batching Plant
Productivity 25-120m³/h* Without Mixer Discharge height 4.2m* Batching accuracy ±1%


1. What is the difference between dry concrete batching plants and wet concrete batching plants?

The main difference between them is that the dry concrete batching plant mixes concrete by the concrete mixer truck. The dry concrete batching plant has a lower initial investment. At the same time, it has a higher standard for concrete mixer trucks.

2. If the wet concrete plants need to produce dry concrete sometimes, do I need to buy a dry concrete batching plant separately?

By controlling the mixing time of the central mixer, Camelway wet concrete plants can meet the demand for temporary production of dry concrete and semi-dry concrete.


1. The productivity of concrete plant is theoretical capacity; the actual capacity may be less than the theoretical value.
2. The discharging height is the receiving height of the standard concrete mixer truck. It can be adjusted according to the actual  needs.
