Professional Skip Type Concrete Batching Plant Manufacturers


Skip Type concrete batching plant is a kind of concrete batching plant, It has the advantages of small footprint and short installation time. Different from the belt type concrete batching plant, the skip type concrete batching plant use the electric brake to hoist the skip (bucket) for loading the mixture with bottom shutter. The following figure is the design drawing of HZS25 skip type concrete batching plant.

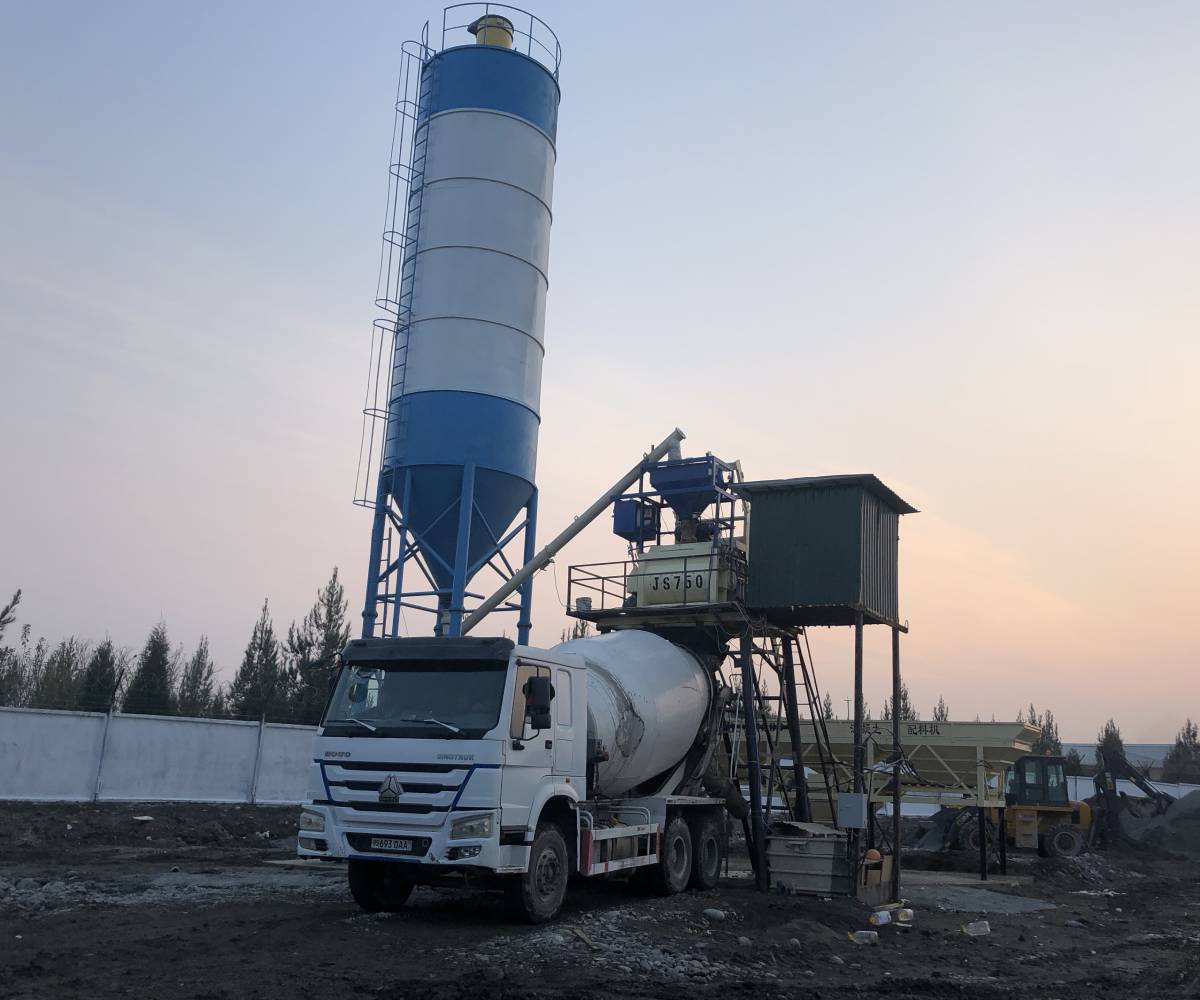

skip type concrete batching plant

Camelway Machinery specialised in concrete batching plant design and manufacture, operates both in the field of industrial pre-cast and ready mixes, providing comprehensive support from plant design to plant construction, and offers both standard and tailored solutions.

skip type concrete batching plant

The HZS series Skip Type Concrete Batching Plant(HZS25, HZS35, HZS50, HZS75) developed by Camewlay Machinery allow their installation on a compact area, are capable of serving the needs for ready-mixed concrete, or as concrete batch plant to produce concrete for the production of reinforced concrete structures, as well as can carry out the function of a classic mobile plant with a towed frame structure and an integrated storage tank for minerals. And all this is carried out thanks to the modular design system, which allows, if during the life of the skip batching plant there is a need to change the functional orientation, subsequently make technological changes that meet new requirements.

Technical Parameters of Skip Type Concrete Batching Plant Camelway

Model HZS25 HZS35 HZS50 HZS75
Capacity 25 m3/h 35 m3/h 50 m3/h 75 м3/ч
Mixing system Twin Shaft Concrete Mixer
Discharge height 1500–3800 mm 3800 mm 3800 mm 3800 mm
Concrete Mixer Model JS500 JS750 JS1000 JS1500
Volume 500 L 750 L 1000 L 1500 L
Max Mix Size 80/60 mm
Aggregate Batcher Model PLD800 PLD1200 PLD1600 PLD2400
Aggregate Bin Count
2 / 3 / 4  3 /4  3 / 4 3 / 4
Weighing system Water, cement, admixtures
Weighing accuracy ±1%
Air system Air compressor
