Skip hoist type Concrete Batching Plant

2019-08-16

Skip hoist type Concrete Batching Plant is kind of concrete batching plant that use Skip hoist to load material. Skip hoist type Concrete Batching Plant has the advantages of small footprint, easy installation, compact structure and lower cost. The HZS25, HZS35, HZS50 and HZS75 of camelway machinery is the Skip hoist type Concrete Batching Plant, The picture below is an animation of Skip hoist type Concrete Batching Plant.

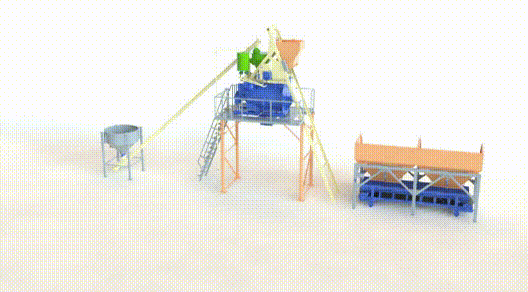

Skip hoist type Concrete Batching Plant Animation

Skip hoist type Concrete Batching Plant is a small concrete plant that usually to be used to produce ready-mixed concrete and mortar, there are also many companies use it in concrete block production lines.

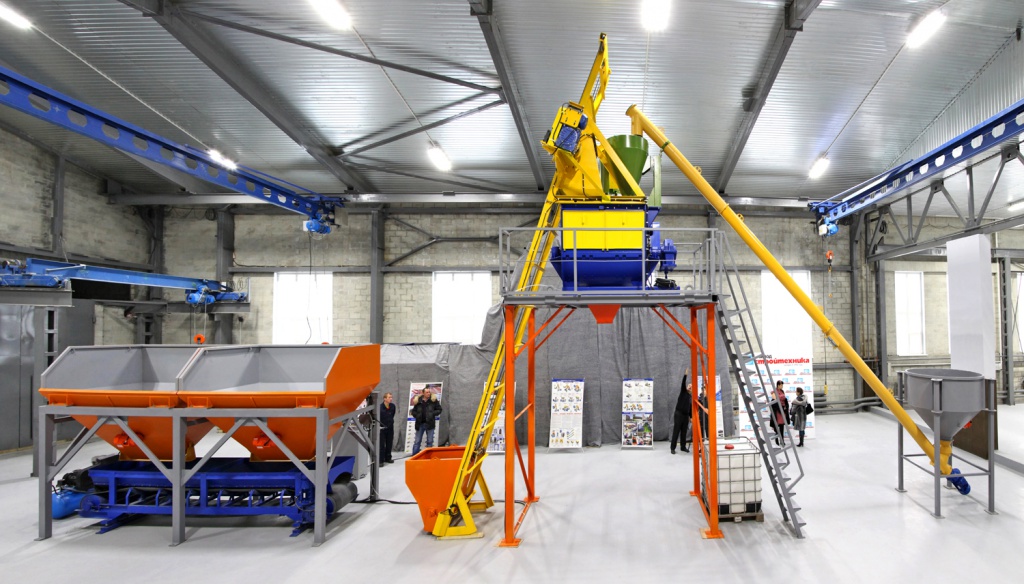

Skip hoist type Concrete Batching Plant

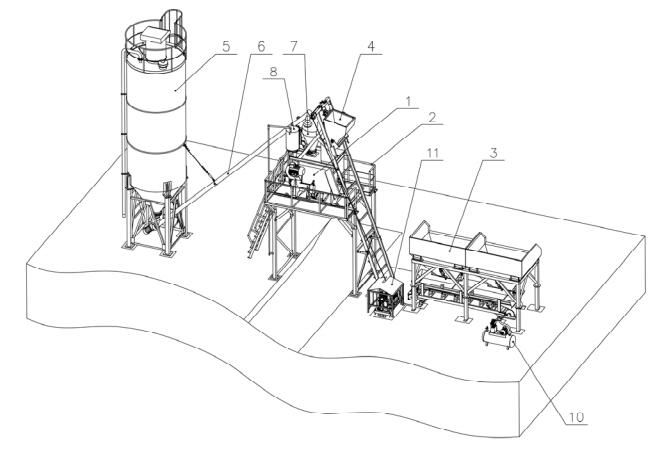

Structure of Skip hoist type Concrete Batching Plant

Structure of Skip hoist type Concrete Batching Plant

1 - concrete mixer; 2 - overpass; 3 - aggregate batcher; 4 - skip hopper; 5 - silos; 6 - screw conveyor; 7 - cement batcher; 8 - water batcher; 9 - remote control (not shown); 10 - compressor; 11 - skip drive.

Skip hoist type Concrete Batching Plant Technical specifications

TypeHZS25HZS35HZS50HZS75
Theoretical Productivity(m3/h)25355075
Concrete mixerTypeJS500JS750JS1000JS1500
Power(KW)24.7538.65165.5
Discharging capacity(L)50075010001500
Aggregate size (Pebble/Macadam)  (mm)80/6080/6080/6080/60
Aggregate Bin Volume(m3)2/3×3.22/3/4×7.32/3/4×8.32/3/4×12
Weighing AccuracyAggregate(KG)1500Kg±2%2200Kg±2%3000Kg±2%4500Kg±2%
Cement(KG)300Kg±1%450Kg±1%600Kg±1%1500Kg±1%
Fly Ash(KG)300Kg±1%300Kg±1%400 Kg±1%600 Kg±1%
Water(KG)200 Kg±1%200 Kg±1%400 Kg±1%600 Kg±1%
Additive(KG)30 Kg±1%30 Kg±1%50 Kg±1%50 Kg±1%
Total Power(KW)100120140160
Discharging Height(M)3.83.83.84.1
Gross Weight(T)10154050
